Каталог продукции
Built-in (встраиваемые)

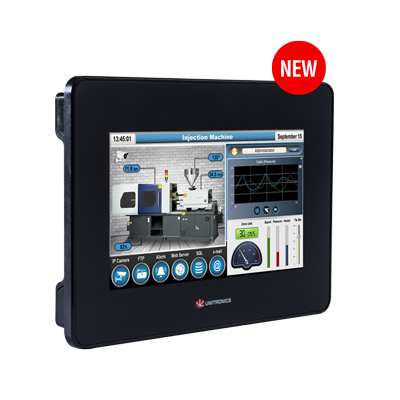

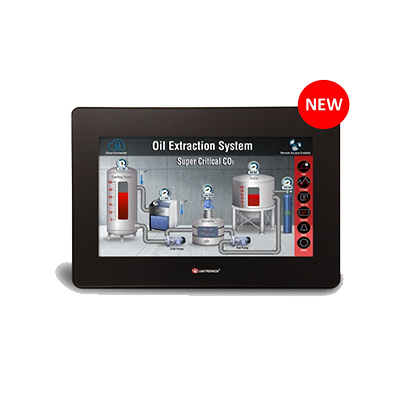

UniStream® Built-in - компактный функциональный контроллер Unitronics для управления сложными агрегатами. PLC + HMI + модули ввода/вывода в едином, очень компактном устройстве с разными вариантами конфигурации встроенных модулей ввода/вывода. В серии представлены две версии встраиваемых контроллеров: Built-in и Built-in Pro.
Unistream US10-B5-B1 Built-in PLC+HMI диагональ экрана 10.1"
No built-in I/Os
Unistream US10-B5-T24 Built-in PLC+HMI диагональ экрана 10.1"
Inputs: 10 Digital, 2 Analog 0-10V/0-20mA/4-20mA 12-bit .
Outputs: 12 Transistor, pnp, incl. 2 PWM 3kHz
Unistream US10-B5-TR22 Built-in PLC+HMI диагональ экрана 10.1"
Inputs: 10 Digital, 2 Analog 0-10V/0-20mA/4-20mA 12-bit.
Outputs: 2 Transistor,npn, incl 2 PWM & 8 Relay
Unistream US10-B5-RA28 Built-in PLC+HMI диагональ экрана 10.1"
Inputs: 14 Digital incl. 2 HSC 90kHz
32-bit, 2 Analog 0-10V/0-20mA/4-20mA 14-bit, 2 Temperature Thermocouple,PT100/NI100/NI120/PT1000/NI1000
Outputs: 8 Relay, 2 Analog 0-10V 12-bit, ±10V, 11-bit+sign 0-20mA,4-20mA 12-bit.
Unistream US10-B5-TA30 Built-in PLC+HMI диагональ экрана 10.1"
Inputs:14 Digital incl. 2HSC 90kHz 32-bit, 2 Analog 0-10V, 0-20mA,4-20mA 14-bit,2Temperature Thermocouple, PT100/NI100/NI120/PT1000/NI1000
Outputs:10 Transistor pnp incl. 2 PWN 3kHz, 2 Analog 0-10V 12-bit, ±10V 11-bit+sign 0-20mA, 4-20mA 12-bit
Unistream US10-B5-R38 Built-in PLC+HMI диагональ экрана 10.1"
Inputs: 24 Digital incl. 4 HSC 90kHz 32-bit, 2 Analog 0-10V, 0-20mA, 4-20mA 12-bit,
Outputs: 12 Relay
Unistream US10-B5-T42 Built-in PLC+HMI диагональ экрана 10.1"
Inputs: 24 Digital incl. 4HSC 90kHz 32-bit, 2 Analog 0-10V,0-20mA,4-20mA 12-bit,
Outputs: 16 Transistor,pnp, incl. 2 PWN 3kHz
Unistream US10-B10-B1 Built-in PLC+HMI диагональ экрана 10.1"
No built-in I/Os
Unistream US10-B10-T24 Built-in PLC+HMI диагональ экрана 10.1"
WEB server, SQL client.
Inputs:10 Digital, 2 Analog 0-10V/0-20mA/4-20mA 12-bit .
Outputs: 12 Transistor, pnp, incl. 2 PWM 3kHz
Unistream US10-B10-TR22 Built-in PLC+HMI диагональ экрана 10.1"
WEB server, SQL client.
Inputs:10 Digital, 2 Analog 0-10V/0-20mA/4-20mA 12-bit.
Outputs: 2 Transistor,npn, incl 2 PWM & 8 Relay
Unistream US10-B10-RA28 Built-in PLC+HMI диагональ экрана 10.1"
WEB server, SQL client.
Inputs: 14 Digital incl. 2 HSC 90kHz
32-bit, 2 Analog 0-10V/0-20mA/4-20mA 14-bit, 2 Temperature Thermocouple,PT100/NI100/NI120/PT1000/NI1000
Outputs: 8 Relay, 2 Analog 0-10V 12-bit, ±10V, 11-bit+sign 0-20mA,4-20mA 12-bit.
Unistream US10-B10-TA30 Built-in PLC+HMI диагональ экрана 10.1"
WEB server, SQL client.
Inputs:14 Digital incl. 2HSC 90kHz 32-bit, 2 Analog 0-10V, 0-20mA,4-20mA 14-bit,2Temperature Thermocouple, PT100/NI100/NI120/PT1000/NI1000
Outputs:10 Transistor pnp incl. 2 PWN 3kHz, 2 Analog 0-10V 12-bit, ±10V 11-bit+sign 0-20mA, 4-20mA 12-bit
Unistream US10-B10-R38 Built-in PLC+HMI диагональ экрана 10.1"
WEB server, SQL client.
Inputs: 24 Digital incl. 4 HSC 90kHz 32-bit, 2 Analog 0-10V, 0-20mA, 4-20mA 12-bit,
Outputs: 12 Relay
Unistream US10-B10-T42 Built-in PLC+HMI диагональ экрана 10.1"
Inputs: 24 Digital incl. 4HSC 90kHz 32-bit, 2 Analog 0-10V,0-20mA,4-20mA 12-bit,
Outputs: 16 Transistor,pnp, incl. 2 PWN 3kHz
Unistream US7-B5-B1 Built-in PLC+HMI диагональ экрана 7"
No built-in I/Os
Unistream US7-B5-T24 Built-in PLC+HMI диагональ экрана 7"
Inputs:10 Digital, 2 Analog 0-10V/0-20mA/4-20mA 12-bit .
Outputs: 12 Transistor, pnp, incl. 2 PWM 3kHz
Unistream US7-B5-TR22 Built-in PLC+HMI диагональ экрана 7"
Inputs:10 Digital, 2 Analog 0-10V/0-20mA/4-20mA 12-bit.
Outputs: 2 Transistor,npn, incl 2 PWM & 8 Relay
Unistream US7-B5-RA28 Built-in PLC+HMI диагональ экрана 7"
Inputs: 14 Digital incl. 2 HSC 90kHz
32-bit, 2 Analog 0-10V/0-20mA/4-20mA 14-bit, 2 Temperature Thermocouple,PT100/NI100/NI120/PT1000/NI1000
Outputs: 8 Relay, 2 Analog 0-10V 12-bit, ±10V, 11-bit+sign 0-20mA,4-20mA 12-bit.
Unistream US7-B5-TA30 Built-in PLC+HMI диагональ экрана 7"
Inputs:14 Digital incl. 2HSC 90kHz 32-bit, 2 Analog 0-10V, 0-20mA,4-20mA 14-bit,2Temperature Thermocouple, PT100/NI100/NI120/PT1000/NI1000
Outputs:10 Transistor pnp incl. 2 PWN 3kHz, 2 Analog 0-10V 12-bit, ±10V 11-bit+sign 0-20mA, 4-20mA 12-bit
Unistream US7-B5-R38 Built-in PLC+HMI диагональ экрана 7"
Inputs: 24 Digital incl. 4 HSC 90kHz 32-bit, 2 Analog 0-10V, 0-20mA, 4-20mA 12-bit,
Outputs: 12 Relay
Unistream US7-B5-T42 Built-in PLC+HMI диагональ экрана 7"
Inputs: 24 Digital incl. 4HSC 90kHz 32-bit, 2 Analog 0-10V,0-20mA,4-20mA 12-bit,
Outputs: 16 Transistor,pnp, incl. 2 PWN 3kHz
Unistream US7-B10-B1 Built-in PLC+HMI диагональ экрана 7"
No built-in I/Os
Unistream US7-B10-T24 Built-in PLC+HMI диагональ экрана 7"
WEB server, SQL client.
Inputs: 10 Digital, 2 Analog 0-10V/0-20mA/4-20mA 12-bit .
Outputs: 12 Transistor, pnp, incl. 2 PWM 3kHz
Unistream US7-B10-TR22 Built-in PLC+HMI диагональ экрана 7"
WEB server, SQL client.
Inputs:10 Digital, 2 Analog 0-10V/0-20mA/4-20mA 12-bit.
Outputs: 2 Transistor,npn, incl 2 PWM & 8 Relay
Unistream US7-B10-RA28 Built-in PLC+HMI диагональ экрана 7"
WEB server, SQL client.
Inputs: 14 Digital incl. 2 HSC 90kHz
32-bit, 2 Analog 0-10V/0-20mA/4-20mA 14-bit, 2 Temperature Thermocouple,PT100/NI100/NI120/PT1000/NI1000
Outputs: 8 Relay, 2 Analog 0-10V 12-bit, ±10V, 11-bit+sign 0-20mA,4-20mA 12-bit.
Unistream US7-B10-TA30 Built-in PLC+HMI диагональ экрана 7"
WEB server, SQL client.
Inputs:14 Digital incl. 2HSC 90kHz 32-bit, 2 Analog 0-10V, 0-20mA,4-20mA 14-bit, 2 Temperature Thermocouple, PT100/NI100/NI120/PT1000/NI1000
Outputs:10 Transistor pnp incl. 2 PWN 3kHz, 2 Analog 0-10V 12-bit, ±10V 11-bit+sign 0-20mA, 4-20mA 12-bit
Unistream US7-B10-R38 Built-in PLC+HMI диагональ экрана 7"
WEB server, SQL client.
Inputs: 24 Digital incl. 4 HSC 90kHz 32-bit, 2 Analog 0-10V, 0-20mA, 4-20mA 12-bit,
Outputs: 12 Relay
Unistream US7-B10-T42 Built-in PLC+HMI диагональ экрана 7"
Inputs: 24 Digital incl. 4HSC 90kHz 32-bit, 2 Analog 0-10V,0-20mA,4-20mA 12-bit,
Outputs: 16 Transistor,pnp, incl. 2 PWN 3kHz
Unistream US5-B5-B1 Built-in PLC+HMI диагональ экрана 5"
No built-in I/Os
Unistream US5-B5-T24 Built-in PLC+HMI диагональ экрана 5"
Inputs:10 Digital, 2 Analog 0-10V/0-20mA/4-20mA 12-bit .
Outputs: 12 Transistor, pnp, incl. 2 PWM 3kHz
Unistream US5-B5-TR22 Built-in PLC+HMI диагональ экрана 5"
Inputs: 10 Digital, 2 Analog 0-10V/0-20mA/4-20mA 12-bit.
Outputs: 2 Transistor,npn, incl 2 PWM & 8 Relay
Unistream US5-B5-RA28 Built-in PLC+HMI диагональ экрана 5"
Inputs: 14 Digital incl. 2 HSC 90kHz
32-bit, 2 Analog 0-10V/0-20mA/4-20mA 14-bit, 2 Temperature Thermocouple,PT100/NI100/NI120/PT1000/NI1000
Outputs: 8 Relay, 2 Analog 0-10V 12-bit, ±10V, 11-bit+sign 0-20mA,4-20mA 12-bit.
Unistream US5-B5-TA30 Built-in PLC+HMI диагональ экрана 5"
Inputs:14 Digital incl. 2HSC 90kHz 32-bit, 2 Analog 0-10V, 0-20mA,4-20mA 14-bit,2Temperature Thermocouple, PT100/NI100/NI120/PT1000/NI1000
Outputs: 10 Transistor pnp incl. 2 PWN 3kHz, 2 Analog 0-10V 12-bit, ±10V 11-bit+sign 0-20mA, 4-20mA 12-bit
Unistream US5-B5-R38 Built-in PLC+HMI диагональ экрана 5"
Inputs: 24 Digital incl. 4 HSC 90kHz 32-bit, 2 Analog 0-10V, 0-20mA, 4-20mA 12-bit,
Outputs: 12 Relay
Unistream PLC USC-B5-TR22
Inputs:10 Digital, 2 Analog 0-10V/0-20mA/4-20mA 12-bit.
Outputs: 2 Transistor,npn, incl 2 PWM & 8 Relay
Unistream US5-B5-T42 Built-in PLC+HMI диагональ экрана 5"
Inputs: 24 Digital incl. 4HSC 90kHz 32-bit, 2 Analog 0-10V,0-20mA,4-20mA 12-bit,
Outputs: 16 Transistor,pnp, incl. 2 PWN 3kHz
Unistream US5-B10-B1 Built-in PLC+HMI диагональ экрана 5"
No built-in I/Os
Unistream US5-B5-T24 Built-in PLC+HMI диагональ экрана 5"
WEB server, SQL client.
Inputs: 10 Digital, 2 Analog 0-10V/0-20mA/4-20mA 12-bit .
Outputs: 12 Transistor, pnp, incl. 2 PWM 3kHz
Unistream US5-B10-TR22 Built-in PLC+HMI диагональ экрана 5"
WEB server, SQL client.
Inputs: 10 Digital, 2 Analog 0-10V/0-20mA/4-20mA 12-bit.
Outputs: 2 Transistor,npn, incl 2 PWM & 8 Relay
Unistream US5-B10-RA28 Built-in PLC+HMI диагональ экрана 5"
WEB server, SQL client.
Inputs: 14 Digital incl. 2 HSC 90kHz
32-bit, 2 Analog 0-10V/0-20mA/4-20mA 14-bit, 2 Temperature Thermocouple,PT100/NI100/NI120/PT1000/NI1000
Outputs: 8 Relay, 2 Analog 0-10V 12-bit, ±10V, 11-bit+sign 0-20mA,4-20mA 12-bit.
Unistream US5-B10-TA30 Built-in PLC+HMI диагональ экрана 5"
WEB server, SQL client.
Inputs: 14 Digital incl. 2HSC 90kHz 32-bit, 2 Analog 0-10V, 0-20mA,4-20mA 14-bit,2Temperature Thermocouple, PT100/NI100/NI120/PT1000/NI1000
Outputs: 10 Transistor pnp incl. 2 PWN 3kHz, 2 Analog 0-10V 12-bit, ±10V 11-bit+sign 0-20mA, 4-20mA 12-bit
Unistream US5-B10-R38 Built-in PLC+HMI диагональ экрана 5"
WEB server, SQL client.
Inputs: 24 Digital incl. 4 HSC 90kHz 32-bit, 2 Analog 0-10V, 0-20mA, 4-20mA 12-bit,
Outputs: 12 Relay
Unistream US5-B10-T42 Built-in PLC+HMI диагональ экрана 5"
Inputs: 24 Digital incl. 4HSC 90kHz 32-bit, 2 Analog 0-10V,0-20mA,4-20mA 12-bit,
Outputs: 16 Transistor,pnp, incl. 2 PWN 3kHz
UniStream UAC-CX-01CAN модуль CX Com 1xCANbus, для линейки Built-in
UniStream UAC-CX-01RS2 CX Com 1xRS232, для линейки Built-in
UniStream UAC-CX-01RS4 CX Com 1xRS485, для линейки Built-in
UniStream UAG-CX-XKP125 CX IO Exp.Kit 1.25m, комплект многорядного исполнения для контроллера
UniStream UAG-CX-XKP300 CX IO Exp.Kit 3m, комплект многорядного исполнения для контроллера
UniStream UAG-CX-XKPL600 CX IO Exp. Long Kit 6m, комплект многорядного исполнения для контроллера
UniStream UAG-CX-XKPL1200 CX IO Exp.Kit 12m, комплект многорядного исполнения для контроллера
| 1 2 |
Тех.паспорт Unitronics US5_7_10-Bx-RA28_TA30- Тех.паспорт Unitronics US5_7_10-Bx-R38_T42
- Тех.паспорт Unitronics US5_7_10-Bx-B1_TR22_T24
- Тех.паспорт Unitronics UAC-CX-XXXX_08_17.Uni-COM-CX-Modules
- Тех.паспорт Unitronics Uni-COM™ UAC-01EC2 Module
- Рук-во по установке Unitronics Uni-COM™ UAC-01EC2 Module
- Руководство по установке Unitronics IG_US5_7_10-Bx-RA28_TA30
- Руководство по установке Unitronics IG_US5_7_10-Bx-R38_T42
- Руководство по установке Unitronics IG_US5_7_10-Bx-B1_TR22_T24
- Руководство по установке коммуникационных модулей Unitronics IG_UAC-CX-XXXX_08-17
